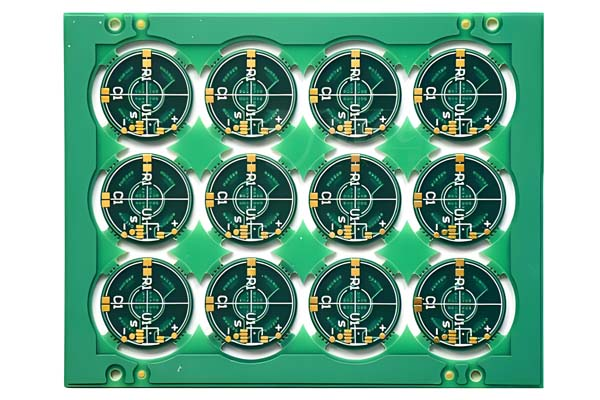

Microcontrollers (MCUs) are compact, self-contained computing systems integrated onto a single silicon chip. Designed to execute specific tasks in embedded systems, they combine processing power, memory, and programmable I/O peripherals—enabling real-time control in applications from smart home devices to automotive systems. For PCB manufacturers, understanding MCUs is critical as they drive demand for high-density interconnects (HDI), impedance-controlled routing, and thermal management solutions.
Table of Contents
1、What Exactly is a Microcontroller?
An MCU is a fully integrated computing unit comprising three core subsystems:
1. Central Processing Unit (CPU):
Executes programmed instructions at clock speeds ranging from 1 MHz to over 200 MHz. Unlike general-purpose CPUs, MCU processors prioritize deterministic real-time response over raw throughput.
2. On-Chip Memory:
– Flash/EEPROM: Stores firmware (non-volatile)
– RAM: Holds temporary data during operation
Typical memory sizes range from 2 KB (basic 8-bit MCUs) to 2+ MB (32-bit ARM Cortex-M7).
3. Programmable Peripherals:
Include timers, ADCs (analog-to-digital converters), UART/SPI/I²C communication interfaces, and GPIO pins. These enable direct interaction with sensors, motors, and displays without external ICs.
>Key Insight: MCUs eliminate 60–80% of peripheral circuitry compared to microprocessor-based designs, reducing PCB layer counts and BOM costs.
2、Microcontroller vs. Microprocessor: Critical Distinctions
While both process data, their architectures target divergent applications:
| Parameter | Microcontroller (MCU) | Microprocessor (MPU) |
| Integration | CPU + RAM + Flash + Peripherals on one chip | Only CPU; requires external chips |
| Power Consumption | Ultra-low (as low as 1 nW in sleep mode) | High (typically >1W) |
| Clock Speed | 1 MHz – 200 MHz | 1 GHz – 5 GHz |
| PCB Complexity | Minimal (single-chip solution) | High (memory controllers, I/O hubs needed) |
| Typical Use Case | IoT sensors, motor controls, wearables | Laptops, servers, OS-driven devices |
3、Types of MCUs & PCB Design Implications
1. By Bit Width
– 8-bit (e.g., PIC, 8051):
Dominates cost-sensitive applications (remote controls, toys). Requires 2–4 layer PCBs with 8/8 mil trace spacing.
– 32-bit (e.g., ARM Cortex-M):
Used in automotive/industrial systems. Demands 6+ layer HDI boards with ≤4/4 mil traces for DDR/BGA routing.
2. By Architecture
– RISC (ARM Cortex, PIC):
Simplified instructions enable faster execution. Ideal for real-time control.
– CISC (8051 derivatives):
Complex instructions reduce code size but increase power. Common in legacy systems.
>PCB Alert: High-speed ARM MCUs (>100 MHz) require impedance-matched differential pairs (100 Ω ±10%) and low-Dk laminates (Df ≤0.005) to prevent signal degradation.
4、Why MCUs Dominate Embedded Systems: Technical Advantages
1. Miniaturization:
A 5mm × 5mm QFN-packaged MCU replaces entire control subsystems, enabling ultra-compact wearables and medical PCBs.
2. Low-Power Operation:
Sleep modes draw <1 μA, extending battery life in IoT devices to 10+ years. Requires optimized PCB power planes and low-leakage decoupling capacitors.
3. Real-Time Responsiveness:
Hardware interrupts achieve μs-level latency for motor control/robotics. PCB layouts must minimize trace lengths to critical I/Os.
4. Cost Efficiency:
High-integration MCUs cost $0.10–$5, reducing assembly labor and layer counts. SMT-friendly packages (QFP, BGA) cut manufacturing costs by 30%.
5、PCB Design Guidelines for MCU-Based Systems
– Thermal Management:
Place thermal vias under high-power MCUs (e.g., 100+ MHz ARM chips). Use 2 oz copper for power planes to dissipate heat.
– Signal Integrity:
– Route high-speed traces (SPI, USB) over continuous GND planes
– Keep ADC traces <20 mm to minimize noise pickup
– EMC Compliance:
Add ferrite beads to I/O lines and shield crystals with guard rings. For automotive MCUs, follow ISO 7637 surge standards.
6、Future Trends: Driving PCB Innovation
1. AI-Enabled MCUs:
Edge-AI chips (e.g., Cortex-M55) require 8+ layer boards with ≤50 μm microvias for neural network accelerators.
2. Wide-Bandgap Integration:
GaN/SiC drivers embedded in MCUs demand thermal substrates (AlSiC, Cu-Mo) to handle 200°C+ temperatures.
3. 3D Packaging:
TSV-based stacked MCU/memory dies will push PCB interposers to sub-10 μm line widths.
Partner with PCB Experts for MCU-Driven Designs
As MCUs evolve toward higher speeds and integration, success hinges on:
– Material Selection: Low-loss PTFE laminates for RF-MCUs (e.g., 5G modules)
– Precision Fabrication: Laser-drilled microvias for 0.35 mm pitch BGA packages
– Testing Rigor: Automated optical inspection (AOI) for solder joints under dense QFNs
→ Download Our MCU Design Checklist – covering thermal relief patterns, decoupling layouts, and IPC-2221A compliance standards.
