Partial Turnkey Assembly
In Partial Turnkey PCB Assembly, the customer is responsible for supplying a partial list of parts.
We will order the remaining parts and perform the assembly according to the customer’s requirements. We can also kit the parts.
In this case, you will be faced with multiple vendors, Need your full coordination with each other in order to avoid miscommunication and avoid PCB assembly delays;
The Best Supplier Support for Your Order From Start to Finish.
For your peace of mind, we walk you through every step of our process and have our PCB experts available to you every step of the way. If you have questions or concerns during any phase of the project, we will stop and answer them as quickly and as thoroughly as possible before moving on. By the time you receive your boards, you’ll know you’re getting exactly what you asked for.
Contact Us to Discuss Your PCB Assembly Project Today
We’re ready to answer any questions you may have about your PCB assembly order right now. Our knowledgeable and friendly staffs are standing by to clear up any concerns or issues you may have and provide all the information you need to get started. Just contact us online today to find out more.

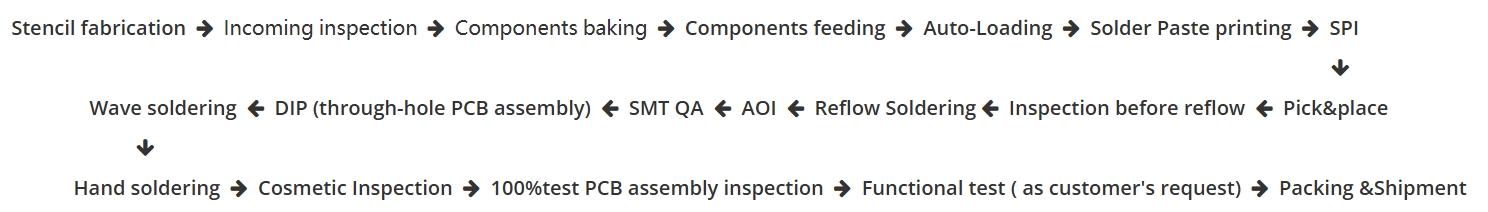

Partial Turnkey Assembly process is as below step by step:
During SMT processing of surface mount assembly, the operators at each workstation should conduct self inspection of the work instructions and material conditions at their respective workstations.
Step 1
Has the homework instruction book been reviewed and officially issued through textual control, and is it unclear.
Step 2
Whether the material names/specifications on the homework instruction book are consistent with the actual product, whether the point markings on the homework instruction book are consistent with the installation (insertion) points, and whether the SMT DIP material forming meets the point requirements and process standards. If there are any abnormalities, they should be reported in a timely manner, and the production manager should handle them properly in conjunction with the quality department, materials department, and engineering department.
Step 3

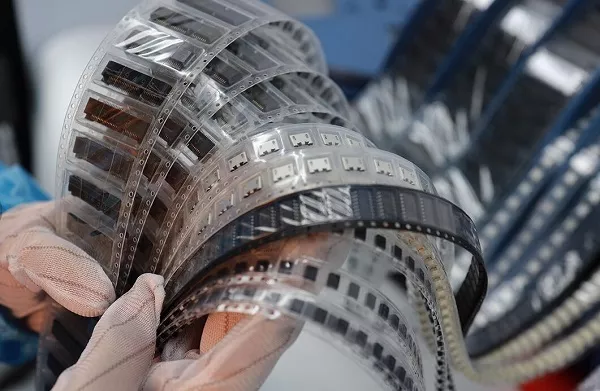

All types of materials and work instructions should be neatly placed in designated locations and clearly labeled. There should be good isolation measures between various materials. DIP materials can only be mass-produced after being confirmed by IPQC or elongation and first piece insertion (pasting) by IPQC.
Step 4
When adding materials, they must be verified by at least two people (usually the operator and the material handler) before production can begin.
Step 5
If the operator discovers any abnormalities during the SMT surface mount production process, such as the point they want to insert (paste) being occupied by other materials, abnormal PCBA and Flip Board, Wipe Board etc., they should immediately report to the on duty elongation or production person in charge. The elongation or production person in charge should designate a dedicated person to handle and inspect the handling results, and then submit them to IPQC for key confirmation.
Step 6
Horizontal components generally require board insertion, neat arrangement, and a width consistent with the span of the welding hole, with an error of ≤± 0.5mm; Vertical components should generally have their body perpendicular to the PCB and be mounted on the board. The height of the top bent part of resistors, diodes, etc. is generally about 1.5-2mm, and the bent part should be neat, continuous, and smooth; Special attention should be paid to whether the direction of directional components is correct; Prevent flying feet and kneeling feet from occurring.
