Cable Harness
SysPCB can provide standard and simple wiring harness assemblies, or custom wire harnesses and cable assemblies at shortest turnaround times.
At SysPCB, we have over 15 years of experience providing the highest quality custom cable and harness assemblies to high-tech customers worldwide. We offer discrete cable and wiring harness assemblies for a variety of cables types, including flat ribbon, RF, optical and multi-conductor cables. We leverage our various processes, such as manufacturing, ultrasonic welding and injection molding, to deliver superior products and services.
SysPCB offers full turnkey cable and wire harness assembly services for prototypes thru medium volume. Fast delivery, components procurement, assembly, and continuity testing.
We have the excellent team to assist you with real-time and effective communication to handle any ECO’s that may occur while your cables are in the Assembly process.
Our harness assemblies can be manufactured with wide array of features, and meet various industrial standards. We take quality seriously, our facility is ISO 9001:2015 certified; we employ rigorous testing and quality control measures to ensure that all our products meet the same high standards. To learn more about our custom cable and harness assembly services, Please contact us directly.
Wire Harness Capabilities
We have become a reliable Chinese harness and cable assembly manufacturer because our advanced harness manufacturing and cable harness assembly technology. With our custom wire harness assembly service, you will geto our professional suggestions to help take you from your original idea to final successful product. SysPCB has cable and wire harness assemblies manufacturing and support service for customers, and you will have industrial harnesses, electromechanical harnesses, power supply harnesses, custom harnesses, and much more.

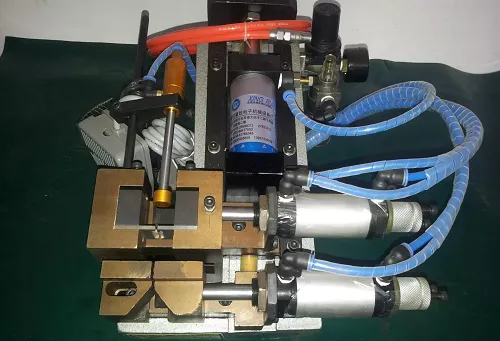

We are a professional Chinese wire harness manufacturer. Cutting, stripping, terminating, splicing, and soldering are included in our automated wire capability. We can deal with cable and wires ranging from 10 AWG to 40 AWG. All sizes of single wires, as well as complex wire harness assemblies are our service scope.
Wire Harness Assembly Process
Wiring assembly processes include but are not limited to the following:
– Installing the wires and/or subassemblies on the assembly board.
– Routing wires and/or subassemblies through any required sleeves.
– Applying wraps, ties, or tapes, particularly on any branch-outs.

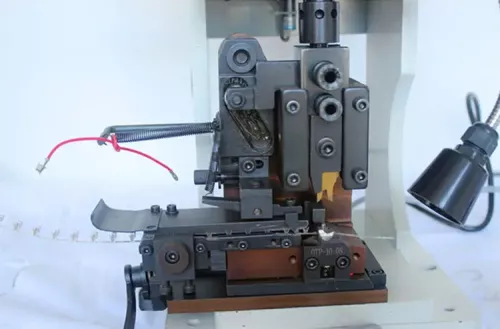

– Crimping terminals onto wires, especially if more than one wire goes into one terminal.

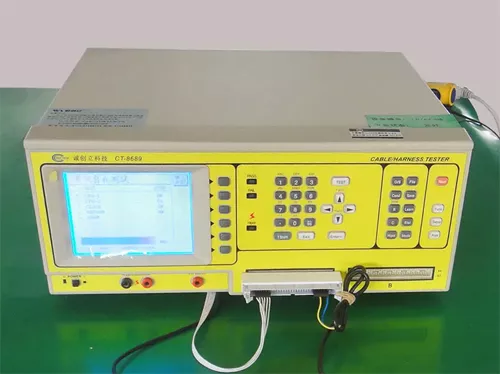

Tester
Wire Harness Testing
SysPCB is a responsible and professional Chinese PCB manufacturer. We always focuses on the quality of harness manufacturing process and wire harness assembly boards. We use test board to test the electrical functionality of a cable or electrical wire harness. The test board can be pre-programmed according to the required electrical characteristics, and test individually or in multiple numbers of the completed harness by plugging it into the test board.
