Cutting-edge LiDAR innovation is reshaping autonomous vehicles, industrial automation, and smart infrastructure with unprecedented precision and reliability.
In the rapidly evolving world of sensing technology, Light Detection and Ranging (LiDAR) has emerged as a revolutionary force across numerous industries. This advanced technology uses laser pulses to measure distances and create detailed three-dimensional representations of environments, providing critical data for applications ranging from autonomous vehicles to industrial automation and beyond.
At SysPCB, we recognize the transformative potential of LiDAR technology and its growing importance in our interconnected world. As specialists in printed circuit board (PCB) manufacturing and design, we understand the critical role that high-quality PCBs play in enabling these sophisticated systems to perform reliably in demanding conditions.
Table of Contents
Ⅰ.How LiDAR Works: The Basics
LiDAR systems operate on a fundamentally simple principle: they emit laser pulses and measure the time it takes for those pulses to return after hitting objects in their path. By calculating this time difference and using the constant speed of light, LiDAR systems can determine distances with remarkable accuracy.
The process involves three main components:
1.A laser emission system that generates and projects laser pulses
2.A receiver system that detects the reflected light
3.A signal processing unit that calculates distances and generates detailed point clouds
These components work together to create rich, precise 3D point cloud data—essentially a digital map of the environment composed of millions of individual measurement points. This data provides autonomous systems with the detailed spatial awareness they need to operate effectively and safely.
Ⅱ.Types of LiDAR Technology
LiDAR systems can be categorized in several ways, each with distinct advantages and applications:
1. Mechanical LiDAR
Mechanical LiDAR systems were the first to be widely adopted, particularly in early autonomous vehicle applications. These systems feature physically rotating laser emitters that provide 360-degree coverage around the vehicle.
While mechanical LiDAR offers excellent field of view and high-resolution data, their moving parts present challenges for durability and automotive certification standards. The complex mechanical structure also tends to make them more expensive.
2. Solid-State LiDAR
Solid-state LiDAR solutions eliminate moving parts entirely, offering potentially greater reliability and lower production costs. There are two primary approaches:
•OPA (Optical Phased Array) LiDAR: Uses multiple individual emitters where phase differences between emitters create constructive and destructive interference patterns that effectively “steer” the laser beam without moving parts.
•Flash LiDAR: Illuminates the entire scene simultaneously with a single broad laser pulse, then captures the returning light with a specialized sensor.
While promising, pure solid-state solutions currently face challenges with range limitations, field of view constraints, and complex manufacturing requirements.
3. Hybrid Solid-State LiDAR
Hybrid approaches balance the benefits of mechanical and solid-state designs, incorporating limited movement through micro-mechanical systems while maintaining much of the robustness of pure solid-state designs. These include:
•MEMS (Micro-Electro-Mechanical Systems): Use tiny mirrors to reflect laser beams in various directions.
•Rotating Mirror Systems: Use rotating mirrors to direct laser pulses while keeping the emitters and detectors stationary.
•Prism-Based Systems: Use rotating prisms to refract light in various patterns.
These hybrid approaches currently dominate automotive applications as they offer an optimal balance of performance, reliability, and cost-effectiveness.
Ⅲ.Wavelength Considerations: 905nm vs. 1550nm
LiDAR systems primarily operate at two different wavelengths, each with distinct advantages:
| Parameter | 905nm LiDAR | 1550nm LiDAR |
| Eye Safety | Lower power required for safety | Safer at higher power levels |
| Detector Cost | Lower cost silicon detectors | Requires expensive indium gallium arsenide |
| Performance | Limited range by eye safety | Longer range possible |
| Weather Resistance | More affected by environmental conditions | Better penetration in adverse conditions |
Most current automotive LiDAR systems use 905nm lasers due to their cost advantages, while 1550nm systems find applications where longer range and better performance in adverse conditions justify the higher cost.
Ⅳ.Key Applications of LiDAR Technology
Automotive and Autonomous Driving
LiDAR has become a critical sensor for advanced driver assistance systems (ADAS) and autonomous vehicles. It provides precise distance measurement and 3D mapping capabilities that complement cameras and radar systems.
Recent innovations include integrated solutions like the Limera laser vision system featured in the AITO M7, which combines LiDAR with cameras in a single unit mounted behind the windshield—a significant improvement over earlier roof-mounted designs.
Industrial Automation and Robotics
LiDAR enables navigation, obstacle avoidance, and environmental mapping for mobile robots in manufacturing, logistics, and warehouse automation. New solutions like Orbbec’s Pulsar ME450 offer multiple scanning patterns and adjustable fields of view, allowing robots to adapt their sensing capabilities to different tasks and environments.
Smart Infrastructure and Security
LiDAR is increasingly deployed in smart city applications, traffic monitoring, and security systems. Its ability to provide accurate 3D data without identifying individuals makes it particularly valuable in privacy-sensitive applications.
Aerospace and Defense
In aerospace, LiDAR systems provide terrain mapping, obstacle detection, and navigation assistance for aircraft and spacecraft. The technology’s accuracy and reliability make it indispensable for critical applications where safety is paramount.

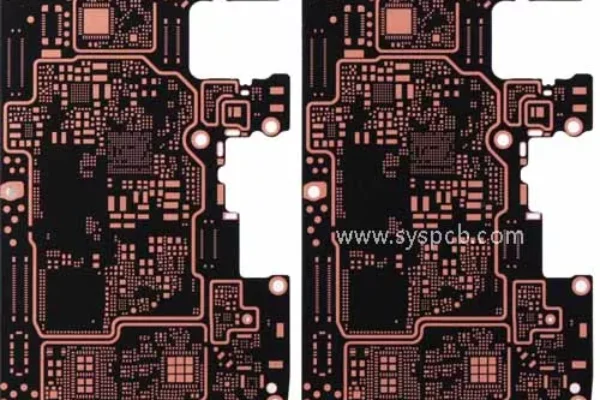

Ⅴ.PCB Design Considerations for LiDAR Systems
At SysPCB, we understand that high-performance PCBs are essential for reliable LiDAR operation. Key design considerations include:
Signal Integrity Management
LiDAR systems involve high-speed digital signals and analog components that must be carefully isolated to prevent interference and signal degradation.
Thermal Management
Laser diodes and processing components generate significant heat that must be effectively dissipated to maintain system stability and longevity.
Miniaturization
As LiDAR systems become more compact and integrated, PCBs must accommodate higher component densities while maintaining performance and reliability.
Environmental Durability
Automotive and industrial LiDAR applications require PCBs that can withstand vibration, temperature extremes, and environmental contaminants.
High-Frequency Expertise
LiDAR systems operate at high frequencies, requiring specialized knowledge of RF design principles and controlled impedance techniques.
Ⅵ.The Future of LiDAR Technology
LiDAR technology continues to evolve rapidly, with several promising trends on the horizon:
Solid-State Dominance
The industry is moving steadily toward pure solid-state solutions as manufacturing processes improve and costs decrease.
Increased Integration
We’re seeing greater sensor fusion with LiDAR being combined with cameras, radar, and other sensors into compact, multi-function units.
Advanced Signal Processing
Machine learning algorithms and specialized processing hardware are enabling more sophisticated interpretation of LiDAR data in real-time.
Cost Reduction
Ongoing development is steadily reducing the cost of LiDAR systems, expanding their potential applications across industries.
Ⅶ.SysPCB’s Expertise in LiDAR Applications
At SysPCB, we’ve positioned ourselves at the forefront of PCB manufacturing for sensing technologies, including LiDAR systems. Our capabilities include:
•Advanced Materials: Expertise with high-frequency laminates and thermal management materials
•Precision Manufacturing: Tight tolerance control for impedance matching and signal integrity
•Testing and Validation: Comprehensive electrical testing and environmental validation
•Design Collaboration: Early engagement with customers to optimize designs for manufacturability and performance
We understand the critical role that reliable PCBs play in LiDAR system performance, and we’re committed to providing the quality and precision that these advanced systems require.
Ⅷ.Conclusion
LiDAR technology has evolved from a specialized tool to a mainstream sensing technology with applications across countless industries. Its ability to provide precise, reliable 3D environmental data makes it indispensable for autonomous systems, industrial automation, and smart infrastructure.
As LiDAR systems continue to advance—becoming more compact, more affordable, and more capable—the underlying PCB technology must keep pace. At SysPCB, we’re proud to contribute to this technological revolution by providing the high-quality circuit boards that enable these sophisticated systems to perform reliably in demanding real-world conditions.
The future of sensing is bright, and LiDAR technology will undoubtedly play a central role in shaping how machines perceive and interact with our world.
