Nickel plating on circuit boards is a crucial process in electronic manufacturing, with core applications covering the following areas:
Table of Contents
Ⅰ. As a substrate for precious metal coatings
The nickel plating layer is often used as the bottom layer of precious metals such as gold and palladium, playing a key supporting role:
1. Diffusion barrier: The nickel layer can effectively prevent direct contact between copper and gold, preventing copper atoms from diffusing into the gold layer, avoiding discoloration, embrittlement, and decreased conductivity of the gold layer. For example, in the electroless nickel/immersion gold (ENIG) process, the nickel layer serves as an intermediate layer to ensure the long-term stability of the gold layer.
2. Enhance adhesion: The nickel layer is firmly bonded to the copper substrate, providing a uniform substrate for subsequent gold plating and improving the mechanical strength and wear resistance of the gold layer. For example, gold fingers (connector contacts) need to be nickel plated and then gold plated to withstand the mechanical stress of frequent insertion and extraction.
3. Cost reduction: By using nickel plating as the bottom layer, the amount of precious metals used can be reduced. For example, in scenarios that require high conductivity, simply coating the nickel surface with a thin layer of gold can meet the requirements.

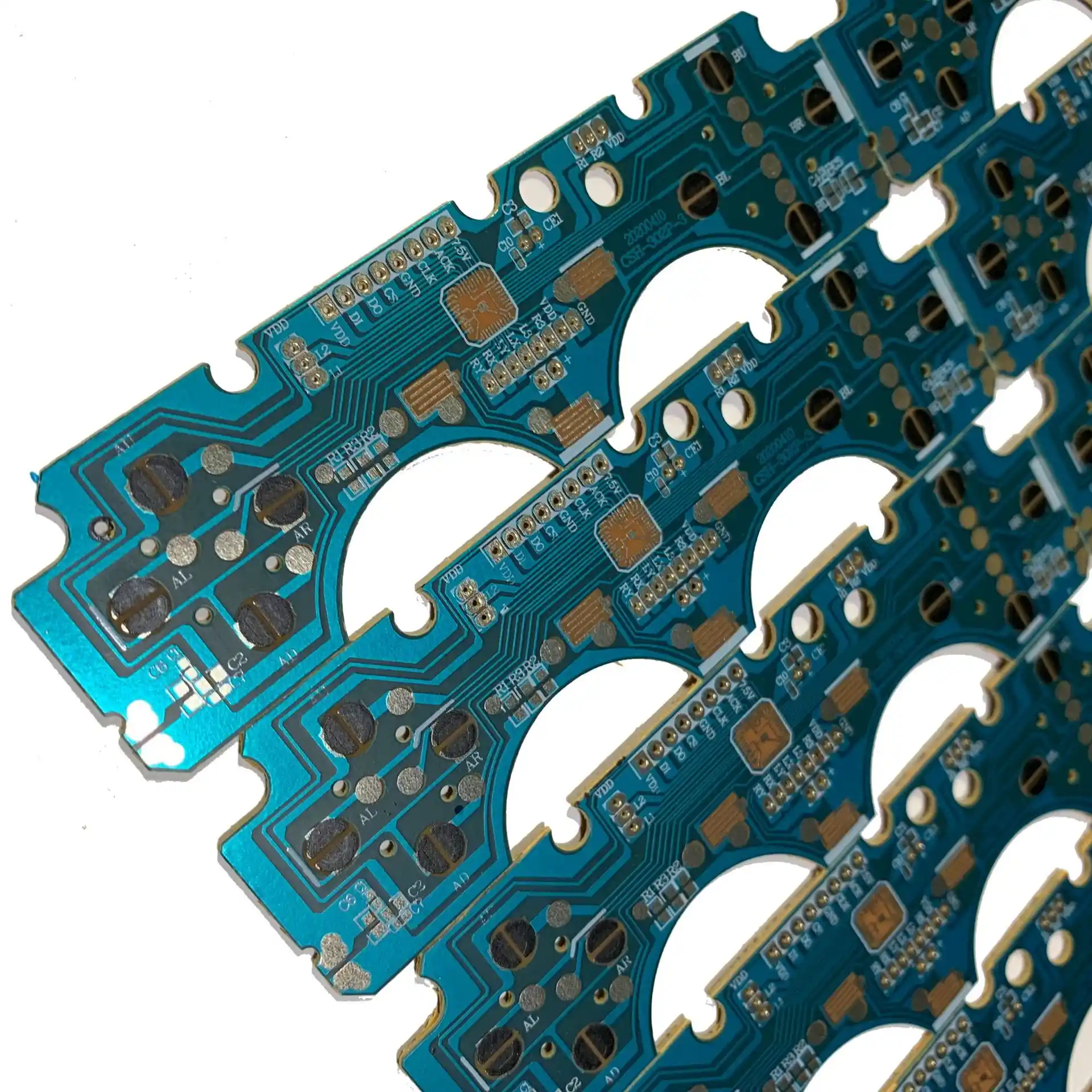

Ⅱ.Improve the corrosion resistance of circuit board Nickel Plated
The nickel layer itself has excellent corrosion resistance:
1. Protecting copper lines: Nickel is prone to form a passivation film in the air, isolating copper from external environments such as humidity and salt spray, and preventing copper oxidation and corrosion. For example, nickel plating can extend the service life of outdoor communication equipment or circuit boards in automotive electronics.
2. Adapt to harsh environments: In high temperature, high humidity, or chemically corrosive environments (such as industrial control equipment), the nickel plating layer can maintain stability, ensuring long-term reliable operation of the circuit board.

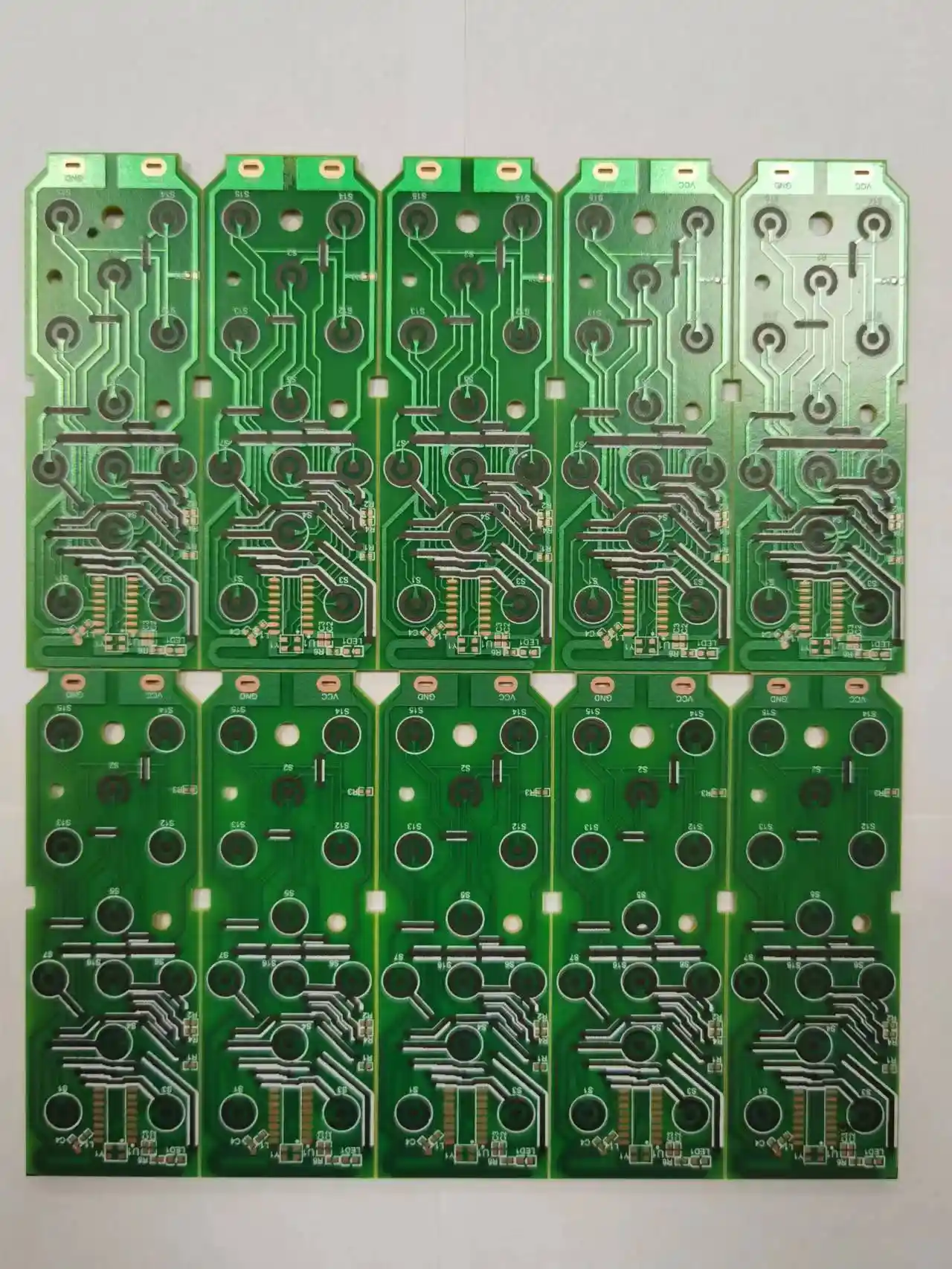

Ⅲ.Optimize welding and electrical performance
The nickel plating layer directly affects the assembly and signal transmission of the circuit board
1. Improve solderability: The nickel surface can provide good wetting conditions for soldering, ensuring that the solder (such as tin lead, lead-free solder) is firmly bonded to the circuit board. For example, the electroless nickel plating layer is uniform and dense, and can adapt to various welding processes such as wave soldering and reflow soldering.
2. Stable contact performance: In connectors, switch contacts, and other areas, nickel plating provides low contact resistance and wear-resistant surfaces, ensuring long-term stable electrical connections. For example, in high-frequency and high-speed circuit boards, nickel plated copper foil can reduce signal attenuation and interference.
3. Compatible with multiple processes: The nickel layer can adapt to processes such as hot press welding and brazing, and has corrosion resistance to ammonia based etchants, meeting different manufacturing needs.
Ⅳ. Enhance mechanical performance and surface quality
Nickel plating can improve the physical properties of circuit boards:
1. Improve hardness and wear resistance: The nickel layer has a high hardness (up to 500-600 HV), which can resist friction and wear. For example, nickel plating on gold fingers significantly improves wear resistance and reduces insertion and extraction losses.
2. Optimize surface flatness: By controlling the composition of the plating solution and process parameters (such as current density and temperature), a uniform and fine nickel layer can be obtained to meet the requirements of fine pitch circuits and precision component installation.
3. Reduce internal stress: Using low stress nickel (such as nickel aminosulfonate system) can avoid cracking or peeling of the coating, ensuring the bonding strength between the coating and the substrate.
Ⅴ. Adapt to special application scenarios
The nickel plating process is irreplaceable in specific fields:
1. High frequency high-speed circuit: Nickel plated copper foil has low loss factor and anti electromagnetic interference characteristics, suitable for scenarios such as 5G communication and high-speed data transmission.
2. Aerospace and Military Industry: The high temperature resistance and radiation resistance of the nickel layer meet strict environmental requirements and are commonly used in circuit boards for satellites, radars, and other equipment.
3. Consumer electronics and automotive electronics: Nickel plating combines corrosion resistance and aesthetics, and is widely used in products such as mobile phones, laptops, and car electronics.
Ⅵ.Environmental Protection and Process Optimization
Modern nickel plating technology emphasizes sustainable development:
1. Environmental protection technology upgrade: Chemical nickel plating adopts cyanide free process, and wastewater treatment is carried out through neutralization precipitation, DTCR heavy metal capture agent and other methods, in compliance with environmental regulations such as RoHS.
2. Exploration of alternative materials: The application of pre plated nickel steel strips in lithium battery steel shells, as well as the research and development of alternative materials such as copper nickel alloys and zinc nickel alloys, are driving the industry towards high-performance and low-cost development.
Industry standards and process parameters
-Thickness requirements: According to the IPC-4552A/B standard, the thickness of the electroless nickel layer (EN layer) is usually 3-6 microns, the immersion gold layer (IG layer) is 0.05-0.1 microns, and the phosphorus content is controlled at 5-11%.
-Process control: Nickel electroplating requires strict control of pH value (3.5-4.5), temperature (50-65 ℃), and current density (1-10 A/dm ²) to ensure coating quality.
In summary, nickel plating on circuit boards enhances the reliability, durability, and adaptability of circuit boards through multiple functions, and is an indispensable key process in modern electronic manufacturing.
