The iPhone 17’s PCB redesign, driven by material science advances and thermal management innovations, sets a new benchmark for mobile electronics.
The iPhone 17 represents a significant evolution in Apple’s design philosophy, particularly in its printed circuit board (PCB) technology. While the much-anticipated resin-coated copper (RCC) foil was ultimately abandoned due to durability concerns, Apple has made substantial strides with low-CTE glass fiber materials and revolutionary thermal management systems.
This strategic shift reflects Apple’s continued commitment to balancing innovation with reliability, offering new opportunities and challenges for PCB manufacturers worldwide.
Table of Contents
1. The Strategic Abandonment of RCC: Prioritizing Reliability Over Thinness
Apple’s decision to forego resin-coated copper (RCC) in the iPhone 17 series marked a significant strategic pivot. Initially planned for both iPhone 16 and iPhone 17, RCC technology promised to reduce PCB thickness by half compared to traditional materials, potentially freeing up valuable internal space for larger batteries or additional components.
The primary advantages of RCC were compelling:
– 50% thinner PCB profiles
– Simplified drilling processes due to the absence of glass fiber
– Reduced board weight
– Enhanced signal integrity through improved dielectric properties
However, despite two years of development and collaboration with material suppliers like Ajinomoto, RCC ultimately failed Apple’s rigorous drop tests. The material’s inherent fragility—a consequence of removing the traditional glass fiber component—made it unsuitable for Apple’s durability standards.
This decision highlights Apple’s unwavering commitment to product reliability even at the expense of potential space savings. As noted by analyst Ming-Chi Kuo, the technology “cannot withstand drops well,” which proved to be its ultimate downfall.
2. Low-CTE Glass Fiber: The New Standard for High-Density PCBs
In place of RCC, Apple has embraced low thermal expansion coefficient (Low-CTE) glass fiber as the foundational material for iPhone 17’s PCBs. This advanced material addresses critical thermal management and signal integrity requirements that RCC couldn’t reliably provide.
Technical Advantages of Low-CTE Glass Fiber:
•Exceptional dimensional stability (CTE values as low as 3.3-3.4 ppm/°C compared to >10 ppm/°C for traditional materials)
•Reduced dielectric loss (Df as low as 0.0017-0.0029) for improved signal transmission
•Enhanced thermal compatibility with silicon chips (CTE of ~3 ppm/°C)
•Prevention of interfacial separation and solder joint fractures during thermal cycling
The implementation varies across iPhone 17 models:
– Standard models: Approximately 3 meters of Low-CTE material per device, covering one-third of the mainboard
– Pro models: Approximately 5 meters of Low-CTE material per device, covering up to 50% of the mainboard
This material’s thermal stability properties are particularly crucial for maintaining the structural integrity of connections between the A19 chip and the main PCB, especially during intensive processing tasks that generate significant heat.
Table: Comparison of PCB Materials in iPhone 17 Series
| Material Property | Traditional FR-4 | RCC (Rejected) | Low-CTE Glass Fiber |
| Thermal Expansion (CTE) | >10 ppm/°C | 15-20 ppm/°C | 3.3-3.4 ppm/°C |
| Dielectric Loss (Df) | 0.02-0.03 | 0.015-0.025 | 0.0017-0.0029 |
| Board Thickness | Standard | 50% thinner | Standard |
| Drop Test Performance | Excellent | Poor | Excellent |
| Signal Integrity | Good | Very Good | Excellent |
3. Thermal Management Revolution: VC Heat Pipes and Horizontal Layout
The iPhone 17 Pro and Pro models introduce the most significant thermal management overhaul in iPhone history, addressing long-standing criticisms of thermal throttling during sustained performance tasks.
VC (Vapor Chamber) Cooling System
•Replaces traditional graphite heat sinks with sealed metal chambers containing minimal liquid
•Operates on phase-change principles: Liquid vaporizes at hot spots, spreads throughout chamber, condenses in cooler areas, and returns as liquid
•Superior heat distribution: Prevents localized hot spots more effectively than graphite
•Enables sustained peak performance during intensive tasks like gaming, video processing, and AI computations
Horizontal Motherboard Layout
•New internal configuration that complements the VC cooling system
•Facilitates better heat dissipation across a larger surface area
•Works in conjunction with the VC system to distribute heat more evenly throughout the device
This thermal management breakthrough represents Apple’s acknowledgment of increasing thermal demands from:
– Advanced AI processing for on-device intelligence features
– High-performance gaming and augmented reality applications
– Computational photography and video processing
– 5G modem heat generation
The combination of VC cooling and the horizontal layout allows the A19 chip to maintain higher performance levels for extended periods without thermal throttling.
4. Material Science Advancements: Beyond Low-CTE Glass Fiber
While Low-CTE glass fiber represents the cornerstone of iPhone 17’s PCB advancements, Apple has incorporated several other material innovations:
Diverse Material Applications:
•Camera modules: Low-CTE materials ensure stability in critical focus mechanisms
•Optical image stabilization systems: Precision maintenance despite temperature fluctuations
•Battery management systems: Enhanced safety and longevity through thermal stability
•RF components: Improved signal integrity in 5G and wireless connectivity modules
Manufacturing Challenges:
The adoption of these advanced materials hasn’t been without complications:
– Production yields decreased by approximately 3% (from 95.7% to ~92.7%)
– Material costs increased by approximately 20% per board
– Supply constraints emerged due to limited manufacturer capacity
The supply chain limitations for Low-CTE glass fiber became so significant that reports indicated Apple CEO Tim Cook was “extremely anxious” about material shortages that threatened production timelines.
5. Implications for PCB Manufacturers: Opportunities and Challenges
The technological shifts in iPhone 17’s PCB design present both opportunities and challenges for PCB manufacturers worldwide.

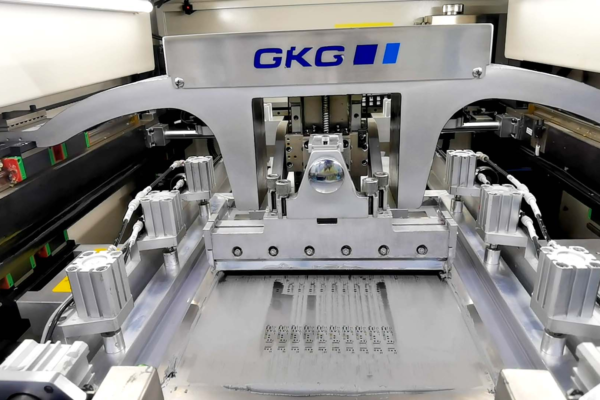

Technical Requirements:
•Advanced manufacturing capabilities for handling Low-CTE materials
•Precision drilling and layering for high-density interconnects (HDI)
•Strict quality control for thermal and mechanical stability
•Sophisticated testing protocols for reliability verification
Supplier Landscape:
Apple has certified three primary suppliers for Low-CTE glass fiber:
– Honghe Technology (Chinese-Taiwanese supplier)
– Zhong Cai Technology (Chinese supplier)
– China Jushi (Chinese supplier)
These suppliers face their own challenges in scaling production to meet Apple’s volume requirements while maintaining precision quality standards.
Market Opportunities:
•Premium pricing structures for advanced PCB technologies
•Technology transfer potential to other consumer electronics segments
•Growing demand across multiple industries including:
–AI servers requiring thermal stability and signal integrity
–Automotive electronics needing reliability under varying temperatures
–Medical devices requiring precision and stability
Table: PCB Industry Impact of iPhone 17 Technologies
| Aspect | Challenge | Opportunity |
| Materials | Higher cost (20% increase) | Premium pricing capabilities |
| Manufacturing | Lower yields (3% decrease) | Technology leadership position |
| Supply Chain | Limited supplier options | Barrier to entry for competitors |
| Testing | More rigorous requirements | Value-added services differentiation |
| Applications | iPhone-specific initially | Broad market applicability eventually |
6. Future Outlook: Beyond iPhone 17 to Next-Generation PCB Technology
The PCB innovations in iPhone 17 provide a glimpse into the future of mobile electronics and beyond.
Immediate Future (iPhone 18 and Beyond):
•Possible RCC reconsideration if durability issues are resolved
•Expanded Low-CTE adoption across more components
•Transition to 2nm process technology with iPhone 18 series
•Thinner profiles with enhanced reliability
Broader Industry Trends:
•AI-driven demand for high-performance PCBs in servers and edge devices
•Automotive applications for reliable electronics under harsh conditions
•Medical electronics requiring precision and stability
Strategic Considerations for PCB Manufacturers:
•Invest in R&D for advanced materials with low thermal expansion
•Develop partnerships with material science companies
•Diversify applications beyond consumer electronics
•Balance performance with manufacturability and cost
The iPhone 17’s PCB evolution demonstrates that reliability often trumps radical innovation in consumer electronics. While RCC technology offered compelling space savings, its failure to meet Apple’s durability standards highlights the importance of balanced innovation—pushing technological boundaries while maintaining the reliability expectations consumers have from premium devices.
For PCB manufacturers, the iPhone 17’s advancements represent both a technical roadmap and a cautionary tale. The industry must continue to innovate while maintaining rigorous quality standards, particularly as devices become more powerful and thermally demanding.
As the lines between consumer electronics, computing, and AI continue to blur, PCB technology will remain at the heart of device performance and reliability—making the innovations in iPhone 17 not just relevant for smartphone manufacturers, but for the entire electronics industry.
Table: Future PCB Technology Development Directions
| Technology | Status in iPhone 17 | Future Development Potential |
| Low-CTE Materials | Implemented | Expansion to more components and devices |
| RCC Technology | Abandoned | Possible future adoption if durability improves |
| VC Cooling | Implemented in Pro models | Expansion to entire lineup and other Apple products |
| Any-Layer HDI | Limited implementation | Broader adoption for higher density |
| 2nm Chip Support | Not supported (iPhone 18 expected) | Preparation for future thermal requirements |
