How to scientifically choose multi-layer PCB manufacturers? A practical guide to zero errors in procurement decision-making
In today’s rapidly iterating electronic industry, multi-layer PCB serve as the “backbone neural network” of electronic devices, and their quality directly determines the performance and lifespan of end products. How to accurately identify truly reliable partners in the face of uneven suppliers in the market? As a technical team that has been deeply involved in the PCB industry for many years, we have summarized the following key dimensions to help you avoid selection traps.
Table of Contents
1、 Basic screening: Qualification and hard power are the bottom line of cooperation

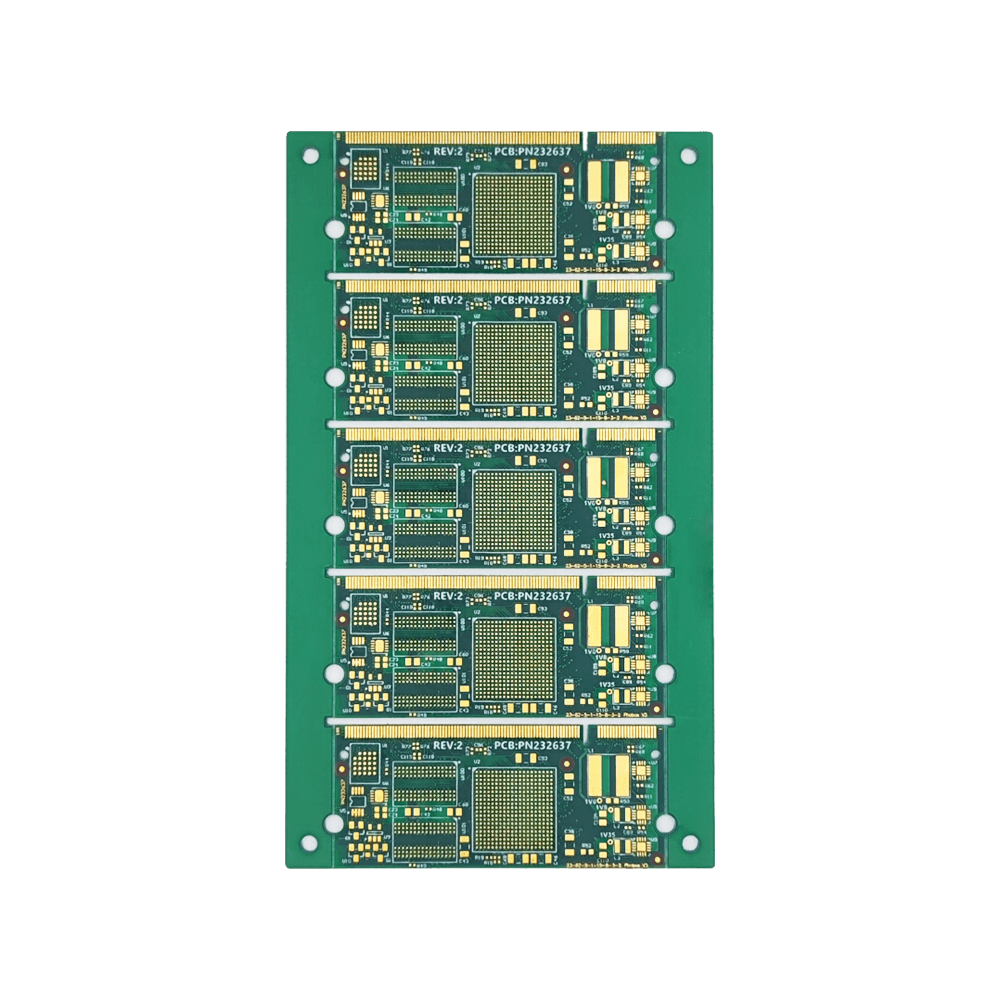

Multi-layer PCB manufacturers-Certification qualifications are the “ID card” of quality
-International system certification: Priority should be given to manufacturers with ISO9001 (Quality Management), ISO14001 (Environmental Management), IATF16949 (Automotive Electronics), and UL safety certifications, which are the basic guarantees for production process standardization.
-Industry access certification: If it involves high-risk fields such as automotive and medical, it is necessary to confirm that the manufacturer has passed special certifications such as AEC-Q100 (automotive regulations) and ISO13485 (medical).
Capacity equipment determines delivery ceiling
-Intelligent production line: Investigate whether the manufacturer is equipped with core equipment such as German Schmoll drilling rig, AOI automatic optical inspection, MES production management system, etc. Factories with automation rate>80% can significantly reduce the risk of human error.
-Capacity elasticity: Manufacturers with a monthly production capacity greater than 100000 square meters usually have the ability to respond to sudden orders, such as Shenghong Technology’s Huizhou Smart Factory supporting 48 hour HDI board quick sample service.
⚙️ 2、 Technical ability: Cracking the process code of high multi-layer boards
Layer number and material compatibility are key indicators
| Product requirements | Recommended process solutions | Representative application scenarios |
|---|---|---|
| 6-8 layer board | High Tg FR-4 (Tg>170 ℃) | Industrial control motherboard, network equipment |
| 10 layers+high-speed board | low loss board (such as Rogers RO4350B) | 5G base station and server |
| Flexible interconnection requirements | Rigid flex joint plate+laser drilling | Aerospace sensors, medical probes |
Data synthesis from industry leading enterprise technology white paper
Special processes determine performance ceiling
-High density interconnect (HDI): Manufacturers that support laser micro hole technology below 50 μ m can solve the wiring bottleneck of complex chips;
-High frequency processing capability: Manufacturer with impedance control accuracy within ± 7% (such as Shennan Circuit) and mixed layer stacking technology, suitable for radar/millimeter wave equipment;
-Special surface treatment: ENIG process is more corrosion-resistant than tin spraying and suitable for BGA solder pads; Carbon oil coating enhances the wear resistance of the keypad.
🛡️ 3、 Quality Control: From Data Traceability to Extreme Testing
The entire process quality defense line is indispensable
- Raw material control: Using base materials from brands such as Jiantao and Shengyi, with a copper thickness of ≥ 25 μ m to ensure the reliability of the hole wall;
- Process monitoring: force displacement curve monitoring of crimping process, TDR testing for impedance consistency;
- Reliability verification: The manufacturer is required to provide a thermal cycle test (-55 ℃~150 ℃ cycle>500 times) and a CAF leakage resistance report.
Intelligent quality control has become a watershed in the industry
Leading enterprises such as Shenghong Technology have deployed AI visual inspection systems with defect recognition rates exceeding 99.5%; Xingsen Technology establishes a full process QR code traceability system, binding the material batch and process parameters of each board.
⏱️ 4、 Cost and Delivery: Disassembling Hidden Risk Points
Price analysis method to avoid the “low price trap”
-Compare BOM details: check copper thickness (with a difference of 40% between 1oz and 2oz), ink type (ordinary ink vs plug hole ink), and special process (cost of holes in the tray+15%);
-Batch gradient pricing: For example, a discount of 8% to 12% can be negotiated for thousands of orders, and long-term cooperative enterprises often enjoy VIP capacity reserve benefits.
Practical suggestions for delivery timeliness
-Sampling cycle: High quality manufacturer’s 6-layer board ≤ 72 hours (such as Jialichuang), 8-layer+HDI board ≤ 5 days;
-Batch delivery: Confirm whether the manufacturer has dedicated express production capacity (such as Pengding Holdings’ Apple Priority Production Line), and sign a delay compensation clause.
🤝 5、 Service Ecology: From Technical Support to Crisis Response
Deep collaboration capability determines long-term value
-Design support phase: Manufacturers providing SI/PI simulation (such as Xingsen Technology) can reduce the risk of redesign by 30%;
-Production assurance stage: The on-site QC team follows up on the first article confirmation (FA Report) in real-time;
-After sales emergency mechanism: Establish a dedicated spare parts warehouse (such as Chongda Technology’s 48 hour replacement board supply).
Be wary of service red lines
-Manufacturers who refuse to provide impedance calculation reports may have technical shortcomings;
-Suppliers who have not opened the factory audit channel should cooperate cautiously.
💎 Conclusion: Choice is strategy, making every board carry the ultimate reliability
In the precision gears of Industry 4.0, multi-layer PCB have evolved from basic components to technology carriers that integrate materials science, signal engineering, and thermodynamics. Choosing a manufacturer is not only a supply chain decision, but also the shaping of product genes.
The motto of a senior procurement director:
What is more expensive than price is unknown risk;
More urgent than the delivery deadline is the out of control quality. ”
