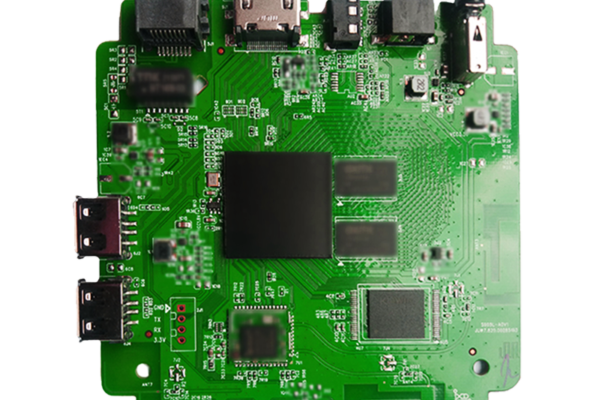

Introduction: The 6G Revolution
The global telecommunications industry is already looking beyond 5G toward 6G technology, which promises to transform connectivity with unprecedented speed, capacity, and latency improvements. While 5G deployment continues globally, industry consortia including the ITU-R WP 5D are actively developing minimum technical performance requirements for IMT-2030 (6G) systems, with formal standardization expected around 2030 .
For PCB manufacturers and designers, the 6G era presents both extraordinary challenges and opportunities. With projected data rates reaching 1 Tbps (compared to 5G’s 20 Gbps) and latency dropping to 100 microseconds, 6G will demand radical advancements in circuit materials, design methodologies, and manufacturing processes . This article explores the technical requirements, material innovations, and design strategies that will define PCB technology in the 6G landscape.
1. 6G Technical Performance Requirements: Implications for PCB Design
The International Telecommunication Union (ITU) is spearheading the development of 6G standards through its WP 5D working group, which focuses on establishing minimum technical performance requirements (TPRs) for IMT-2030 systems . These emerging requirements present specific challenges for PCB design:
Frequency Band Expansion
6G systems will utilize frequencies from sub-terahertz (100-300 GHz) to potentially 1 THz, far exceeding 5G’s millimeter-wave spectrum . At these frequencies, PCB substrates must exhibit exceptional dielectric properties with minimal variation across extreme bandwidths.
Signal Integrity at Terahertz Frequencies
With bandwidths extending to 100 GHz (compared to 5G’s 1 GHz), traditional PCB materials experience significant signal attenuation . Maintaining signal integrity will require revolutionary approaches to transmission line design, impedance control, and loss mitigation.
Thermal Management Challenges
The tremendous data throughput of 6G systems will generate substantial heat in electronic components. PCB designs must incorporate advanced thermal management strategies to ensure reliability under high-power operation.
Table: Comparison of 5G vs. 6G Performance Requirements
| Parameter | 5G Requirements | 6G Projected Requirements |
| Peak Data Rate | 20 Gbps | 1 Tbps |
| Latency | 1 ms | 100 μs |
| Maximum Bandwidth | 1 GHz | 100 GHz |
| Frequency Bands | Sub-6 GHz, mmWave (24-47 GHz) | Sub-THz (100-300 GHz), potentially up to 1 THz |
2. Critical PCB Material Considerations for 6G Applications
Low Dielectric Constant (Dk) and Loss Tangent (Df)
At terahertz frequencies, traditional FR-4 materials become completely unusable due to excessive dielectric losses. 6G PCB substrates must exhibit exceptionally low and stable dielectric constant (Dk) and dissipation factor (Df) across ultra-broad bandwidths .
Recent material innovations show promising directions:
•Modified Poly(Phenylene Ether) Systems: Research demonstrates that bismaleimide-incorporated PPE resins can achieve excellent dielectric properties at frequencies above 100 GHz while maintaining performance stability under high humidity conditions (85°C/85% RH) .
•Advanced PTFE Composites: While PTFE (polytetrafluoroethylene) remains a candidate for 6G applications due to its outstanding dielectric properties, environmental regulations on PFAS chemicals are driving research into suitable alternatives .
•PEEK-Based Nanocomposites: Space-qualified 3D-printed PEEK composites incorporating glass fiber and potassium titanate whiskers have demonstrated dielectric constants as low as 2.49 F/m with 44% reduced dielectric loss in the X-band, showing potential for 6G applications .
Dimensional Stability and Thermal Management
The extremely high frequencies of 6G systems make circuit performance highly sensitive to physical dimensional changes. PCB materials must demonstrate minimal coefficient of thermal expansion (CTE) to maintain consistent electrical characteristics across temperature variations.
Advanced material systems show significant progress in this area:
•Bismaleimide-Crosslinked Systems: These demonstrate dramatically reduced CTE while maintaining low dielectric losses, achieving both dimensional stability and electrical performance at high frequencies .
•Dual-Network Reinforcement: Composites incorporating both glass fibers and potassium titanate whiskers have shown 50% reduction in CTE (from 34.6 ppm/°C to 17.27 ppm/°C) while maintaining excellent dielectric properties .
3. PCB Manufacturing and Design Innovations for 6G
Advanced Manufacturing Processes
Conventional PCB manufacturing processes face significant challenges at terahertz frequencies. Several advanced techniques show particular promise for 6G applications:
•Modified Semi-Additive Process (mSAP): This technique enables finer line widths and superior geometry control compared to traditional subtractive methods. Research shows mSAP can achieve etch factors up to 3.43 and reduce insertion loss by 33.071 dB/m at 20 GHz compared to standard processes .
•Surface Roughness Optimization: As signal frequencies increase into the terahertz range, conductor surface roughness becomes a critical factor in signal attenuation. Studies indicate that properly optimized copper surfaces can reduce insertion loss, with chemical silver surface treatments demonstrating losses as low as -50.59 dB/m at 20 GHz .
•3D Printing/Additive Manufacturing: The development of 3D-printable dielectric materials with controlled properties offers new possibilities for complex antenna structures and integrated components needed for 6G systems .
Stackup Design and Material Compatibility
Multilayer PCB designs for 6G applications require careful consideration of material compatibility and stackup configuration:
•Dielectric Constant Consistency: Variations in Dk between different material layers can cause impedance discontinuities and signal reflections at terahertz frequencies.
•Glass Fiber Weave Effects: Standard glass fiber weaves can create localized variations in dielectric constant, necessitating specialized spread-glass or non-woven reinforcements .
•Hybrid Material Approaches: Combining different specialized materials in a single stackup may optimize performance but requires careful attention to CTE matching and interfacial adhesion.
4. Application-Specific 6G PCB Implementations
Terahertz Antenna Arrays
The extremely short wavelengths at terahertz frequencies will require highly integrated antenna structures directly incorporated into PCB designs. These may include:
•Waveguide-Integrated Substrates: Combining traditional PCB materials with embedded waveguide structures for efficient signal transition.
•Lens-Enhanced Arrays: PCBs incorporating dielectric lens elements to focus terahertz signals while minimizing losses.
Integrated Sensing and Communications
6G systems are expected to deeply integrate communication and sensing capabilities. PCB designs will need to support:
•Ultra-Wideband Signal Processing: Circuits capable of handling extremely wide instantaneous bandwidths for joint communication and sensing.
•AI-Enhanced Edge Processing: Integration of high-performance computing elements alongside RF front-ends for real-time signal analysis.
5. The Path Forward: Preparation Strategies for PCB Manufacturers
Research and Development Priorities
To position for the 6G transition, PCB manufacturers should focus on several key areas:
•Material Partnerships: Collaborate with material scientists and suppliers to develop and characterize next-generation substrate technologies, particularly those based on poly(phenylene ether) systems and high-performance thermoplastic composites .
•Process Refinement: Advance manufacturing capabilities for ultra-high-density interconnects with exceptional dimensional control, focusing on techniques like mSAP that demonstrate measurable improvements in high-frequency performance .

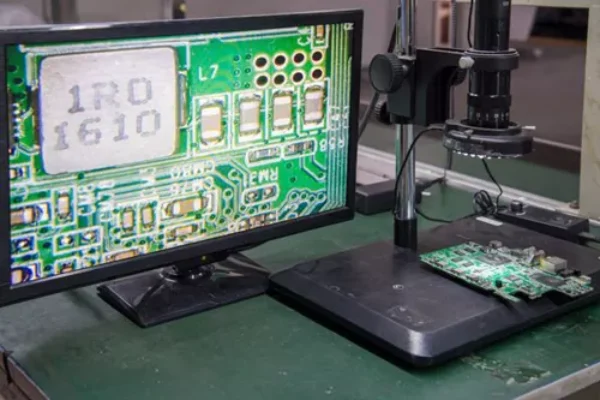

•Testing Methodologies: Develop characterization techniques for terahertz frequencies, as traditional PCB testing methods become inadequate above 100 GHz.
Standardization and Collaboration
Engagement with industry standards bodies will be crucial for aligning development efforts with technical requirements:
•ITU-R WP 5D Contributions: Monitor and contribute to the development of IMT-2030 requirements, particularly those relating to RF hardware performance .
•3GPP Timeline Awareness: Track the progression of 3GPP’s 6G study items, with a Technical Report on 6G scenarios and requirements expected by June 2026 .
Conclusion: Positioning for the 6G Transition
The transition to 6G technology represents both a formidable challenge and a significant opportunity for the PCB industry. Success in the 6G era will require:
•Material Innovation: Developing and mastering substrates with exceptional dielectric properties at terahertz frequencies while addressing environmental regulations .
•Manufacturing Precision: Advancing processes like mSAP to achieve the dimensional stability and feature control necessary for terahertz operation .
•System-Level Thinking: Designing PCBs as integrated systems that balance electrical, thermal, and mechanical requirements from the outset.
While commercial 6G deployment remains years away, preparation must begin now. By investing in material science, process refinement, and testing capabilities today, forward-thinking PCB manufacturers can position themselves at the forefront of the next wireless revolution.
The companies that master the complexities of 6G PCB technology will be well-positioned to capture value in emerging markets spanning immersive communications, connected intelligence, and integrated sensing and communication systems that 6G promises to enable.
