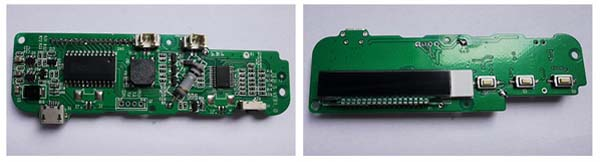

Conformal coating is a protective layer applied to Printed Circuit Board Assemblies (PCBAs) to safeguard against environmental factors such as moisture, dust, chemicals, and temperature fluctuations. This coating enhances the reliability and longevity of electronic circuits, making it essential for applications in automotive, aerospace, medical, and industrial electronics. This article explores the benefits, types, application methods, and key considerations for applying conformal coating to PCBAs.
Table of Contents
1. What are the benefits of conformal coating?
Applying a conformal coating to PCBAs provides several advantages:
Moisture and Corrosion Resistance: Prevents oxidation and short circuits due to humidity or water exposure.
Chemical Protection: Shields against harsh chemicals, solvents, and contaminants.
Thermal Stability: Enhances performance in extreme temperature conditions.
Electrical Insulation: Reduces the risk of arcing and ensures stable circuit operation.
Mechanical Durability: Protects against vibration, shock, and physical damage.
2. What are the types of conformal coatings?
Several types of conformal coatings are available, each with unique properties suited for different applications:
(1) Acrylic (AR) Coatings
Advantages: Easy to apply and remove, good moisture resistance, cost-effective.
Applications: Consumer electronics, general-purpose PCBAs.
(2) Silicone (SR) Coatings
Advantages: Excellent high-temperature resistance, flexible, good dielectric properties.
Applications: Automotive, aerospace, and industrial electronics.
(3) Polyurethane (UR) Coatings
Advantages: Strong chemical and abrasion resistance, durable.
Applications: Harsh environments, chemical processing equipment.
(4) Epoxy (ER) Coatings
Advantages: High strength, excellent moisture and chemical resistance.
Applications: Heavy-duty electronics, aerospace, and marine applications.
(5) Parylene (XY) Coatings
Advantages: Ultra-thin, superior protection, biocompatible.
Applications: Medical devices, aerospace, high-reliability circuits.
3. What are the application methods of conformal coatings?
The method of applying conformal coating depends on the required precision, production volume, and environmental considerations:
(1) Brushing
Pros: Low cost, ideal for small batches and touch-ups.
Cons: Inconsistent thickness, labor-intensive.
(2) Spraying
Pros: Fast, even coverage, suitable for medium-volume production.
Cons: Overspray can lead to material waste, requires masking.
(3) Dipping
Pros: Complete coverage, good for high-volume production.
Cons: Risk of coating pooling, requires controlled viscosity.
(4) Selective Coating (Automated Dispensing)
Pros: Precise application, minimal waste, best for high-precision circuits.
Cons: Higher initial equipment cost.
4. What are the key considerations for conformal coatings?
To ensure effective protection and performance, consider the following factors:
Surface Preparation: Clean the PCB thoroughly to remove contaminants before coating.
Masking: Protect connectors and components that should not be coated.
Curing Process: Follow proper curing guidelines (UV, thermal, or air-drying) to achieve optimal coating properties.
Inspection and Testing: Use UV light or automated inspection to verify coating uniformity and coverage.
Reworkability: Choose coatings based on the need for future modifications or repairs.
Conclusion
Applying conformal coating to PCBAs is a crucial step in enhancing durability and reliability, especially for electronics exposed to harsh environments. By selecting the appropriate coating type, application method, and quality control measures, manufacturers can ensure optimal protection and longevity for their PCBAs. Understanding these factors helps engineers and production teams implement effective coating solutions for diverse electronic applications.
