BJT (Bipolar Junction Transistor) and MOSFET (Metal Oxide Semiconductor Field Effect Transistor) are two different types of transistors with significant differences in structure, principle, performance, and application scenarios. The following are their main differences:
Table of Contents
1. Structure and principle
– BJT

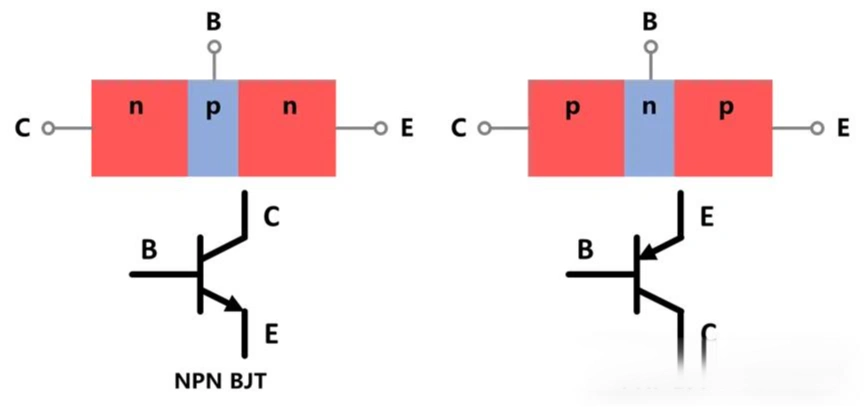

-Type: Divided into NPN and PNP types, consisting of two PN junctions (emitter junction, collector junction).
-Control method: Current controlled device, which controls the collector current (Ic) through the base current (Ib), following the principle of Ic=beta Ib (where beta is the current amplification factor).
-Carrier: Two types of carriers (electrons and holes) participate in conduction, hence it is called bipolar.
– MOSFET
-Type: Divided into N-channel and P-channel, as well as enhanced/depleted. The commonly used type is the enhanced MOSFET.
-Control method: Voltage controlled devices control the drain current (I2) through the gate source voltage (V_GS). The gate and source are isolated by an insulating layer (such as silicon dioxide), which consumes almost no input current.
-Carrier: Only one type of carrier (electron or hole) participates in conduction, hence it is called unipolar.
2. Performance characteristics
| Features | BJT | MOSFET |
| Input impedance | Low (about 1k Omega) | Extremely high (>10 ^ 9 Omega) |
| Drive mode | requires continuous base current | voltage drive, with extremely low static power consumption |
| Switching speed | Slow (with charge storage effect) | Fast (without charge storage, controlled by electric field) |
| On resistance | Low (in saturation state) | High (dependent on process, modern MOSFETs have improved) |
| Voltage/current capability | High voltage/high current applications (such as power amplification) | Low voltage/high frequency applications (such as digital circuits, small signal amplification) |
| Temperature characteristics | Poor thermal stability (current gain increases with temperature) | Good thermal stability (on resistance increases with temperature) |
| Noise | High (presence of shot noise) | Low (especially at low frequencies) |
3. Application scenarios
– BJT
-Analog circuits: audio amplifier, power amplifier.
-High speed switch: Low power applications that require fast on/off (such as early TTL logic circuits).
-Scenarios that require high current drive, such as motor control.
– MOSFET
-Digital circuits: CMOS logic gates, microprocessors, memory.
-High frequency switches: Switching Power Supply (SMPS), DC-DC Converter.
-Low power applications: battery powered devices (such as mobile phones, laptops).
-High input impedance circuit: sensor interface, operational amplifier input stage.
4. Comparison of advantages and disadvantages
-Advantages of BJT
-High transconductance and good linearity, suitable for precision analog circuits.
-Strong ability to drive with high current.
-Low saturation voltage drop, suitable for low voltage applications.
-Disadvantages of BJT
-Low input impedance, requiring continuous driving current and high power consumption.
-The switch speed is limited and not suitable for high-frequency applications.
-Advantages of MOSFET
-Voltage driven, with extremely low static power consumption.
-Fast switching speed, suitable for high-frequency applications.
-High input impedance, almost consumes no driving power.
-Good thermal stability and strong anti-interference ability.
-Disadvantages of MOSFET
-The conduction resistance is relatively high, and heat dissipation is required for high-power applications.
-The gate is susceptible to electrostatic breakdown and requires anti-static protection.
5. Summary
-Choose BJT: When high transconductance, high current drive, or precise analog performance is required.
-Choose MOSFET: When pursuing low power consumption, high-frequency switching, or high input impedance.
In modern electronic design, MOSFETs dominate in the fields of digital circuits and low power consumption due to their high integration and low power consumption advantages; BJTs are still widely used in specific scenarios such as power amplification and analog circuits.
